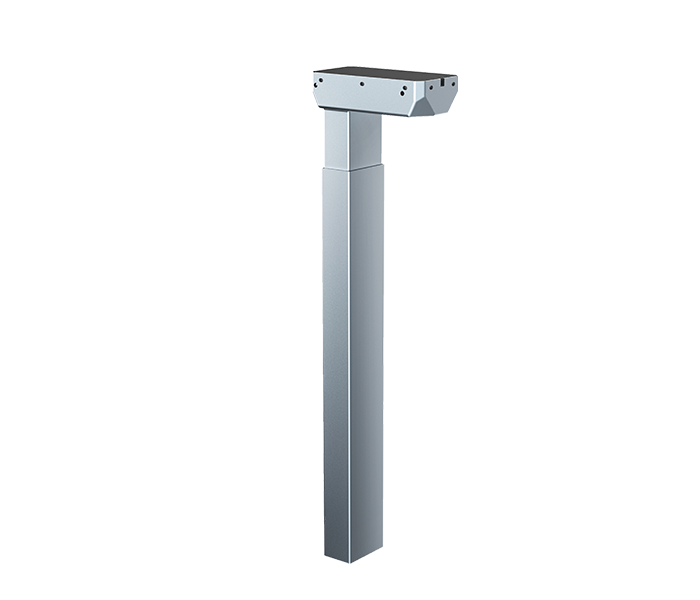

JS36DR1-2-S - jiecang Lifting Columns 리프트 기둥







JS36DR1-2-S - jiecang Lifting Columns 리프트 기둥







Specifications (명세서)

Type	JS36DR1-2-S
Rated load(N)	800
Self locking(N)	1200
Typical current at rated Load(A) 0 load~ Rated load(mm/s)	5
Typical speed	30
Duty cycle	10%
Stroke length(mm)	500
Installation length(mm)	650







Description (제품 기능 설명)

• 3mm optimized motor housing was designed for extra strength and stability
• The tube is no hole design
• Max. load capacity is 800N per column.
• Fit with JCB35N series Jiecang control boxes to realize stable speed 30mm/s
• Low noise≤50dB
• Max. Bending moment: 150N.m
• Standard installation length: 650mm
• Standard stroke length: 500mm
• Column dimensions: outer tube: 80x50mm, inner tube:75x45mm
• Motor housing dimension: 190x96x48mm
• Motor: Jiecang design high power motor
• Hall sensor enabling parallel drive
• Surface: Powder coating with standard
• Color: White(RAL9016), Black(RAL9005), Grey(RAL7045)

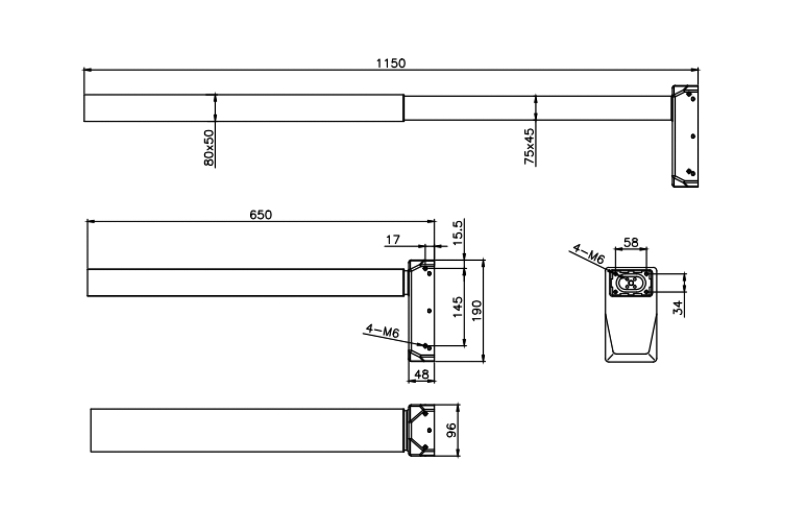

크기







다운로드

升降立柱-JS36DR1-2-S-en.pdf

0.51MB

JS36DR1-2-S.dwg

0.11MB

JS36DR1-2-S.stp

1.16MB
